Laser obstacle clearing microcomputer

Laser obstacle removal microcomputer (customizable for various powers)

1： Laser optical parameter indicators

1) Working mode: Continuous/Modulation

2) Laser center wavelength: 1080nm ± 10nm

3) Laser average output power: Each power laser module can be customized

4) Beam quality M2: ≤ one point two

5) Modulation frequency: 20kHz

6) Fiber numerical aperture NA: 0.06 ± 0.005

Single mode fiber core diameter: 20 μ m

7) System response time: ≤ 1s

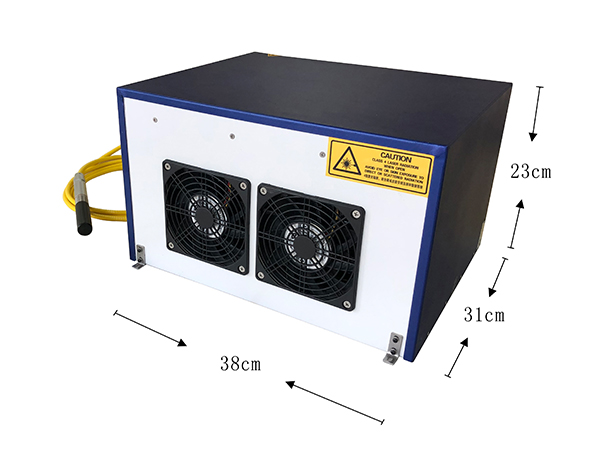

2： Structural dimensions and technical requirements

1) Total weight of the system: ≤ 15kg

2) Mean time between system failures: ≥ 200h

3) Working temperature:- 20℃～+60℃

Storage temperature:- 20℃～+60℃

Charging temperature: 0 ℃~+40 ℃

4) Rain proof and moisture resistant

5) It has overheat protection function.

6) Operation mode: Single mode continuous

7) Cooling requirements: no water cooling, good ventilation

8) Adjustable power range: 0-100

3： Battery parameters

Power supply method: lithium battery power supply

Battery voltage: 48V/DC
